♦ Core Construction & Durability:
• Stainless Steel Housing: Wrapped in a heavy-duty, corrosion-resistant stainless steel shell optimized for washdown environments.
• Waterproof Rating: Certified IP67 (submersion protection) and specified at IP65 (protection against low-pressure water jets).
• Industrial Keyboard: Equipped with 7 tactile, waterproof mechanical keys for clear user input
♦ Display & Hardware Specifications:
• High-Contrast Display: Features a large 52mm (2-inch) LCD screen with a crisp white LED backlight for visibility in low-light environments.
• Resolution & Divisions: Offers a resolution up to 6,000e / 7,500e, and a high non-approved resolution up to 30,000d.
• Load Cell Capacity: Can power and interface with 1 to 4 \(350\,\Omega\) load cells simultaneously.
• Operating Temperature: Formulated to perform consistently between -10°C and +40°C
♦ Power & Battery Performance:
• Dual Power Input: Operates via a standard AC Adapter (12V/500mA)or its internal power cell.
• Internal Rechargeable Battery: Equipped with a built-in 6v/4Ah lead-acid battery.
• Runtime Efficiency: Delivers between 40 to 70 hours of continuous cordless use when the backlight is turned off. It also features an automated power-down function to preserve battery life
♦ Built-In Functions & Software Features:
• Check-Weighing Mode: Allows users to program upper and lower weight limits. The unit emits an audible HI/OK/LOW beep alarm when a target weight threshold is crossed.
• Animal Weighing: Integrated digital smart filters adjust for dynamic moving loads to lock in stable weights for livestock.
• Data Management: Supports accumulation tracking (M+), Net/Gross weight toggling, parts counting, and peak weight hold options
♦ Connectivity Options:
• Standard Interface: Includes a factory-installed RS-232 port to continuously stream stable ASCII text streams straight to a PC or data printer.
• Stainless Steel Housing: Wrapped in a heavy-duty, corrosion-resistant stainless steel shell optimized for washdown environments.
• Waterproof Rating: Certified IP67 (submersion protection) and specified at IP65 (protection against low-pressure water jets).
• Industrial Keyboard: Equipped with 7 tactile, waterproof mechanical keys for clear user input
♦ Display & Hardware Specifications:
• High-Contrast Display: Features a large 52mm (2-inch) LCD screen with a crisp white LED backlight for visibility in low-light environments.
• Resolution & Divisions: Offers a resolution up to 6,000e / 7,500e, and a high non-approved resolution up to 30,000d.
• Load Cell Capacity: Can power and interface with 1 to 4 \(350\,\Omega\) load cells simultaneously.
• Operating Temperature: Formulated to perform consistently between -10°C and +40°C
♦ Power & Battery Performance:
• Dual Power Input: Operates via a standard AC Adapter (12V/500mA)or its internal power cell.
• Internal Rechargeable Battery: Equipped with a built-in 6v/4Ah lead-acid battery.
• Runtime Efficiency: Delivers between 40 to 70 hours of continuous cordless use when the backlight is turned off. It also features an automated power-down function to preserve battery life
♦ Built-In Functions & Software Features:
• Check-Weighing Mode: Allows users to program upper and lower weight limits. The unit emits an audible HI/OK/LOW beep alarm when a target weight threshold is crossed.
• Animal Weighing: Integrated digital smart filters adjust for dynamic moving loads to lock in stable weights for livestock.
• Data Management: Supports accumulation tracking (M+), Net/Gross weight toggling, parts counting, and peak weight hold options
♦ Connectivity Options:
• Standard Interface: Includes a factory-installed RS-232 port to continuously stream stable ASCII text streams straight to a PC or data printer.
المواصفات التفصيلية
♦ Divisions: 6,000e
♦ Display:
52mm（2.0inch） digits LCD display with white LED backlight
♦ Keyboard: 7 mechanical keys
♦ Housing: Stainless steel
♦ Standard：
6V/4Ah lead-acid battery up to 40 hours continuous use (without backlight)
♦ Optional：RS232
♦ Display:
52mm（2.0inch） digits LCD display with white LED backlight
♦ Keyboard: 7 mechanical keys
♦ Housing: Stainless steel
♦ Standard：
6V/4Ah lead-acid battery up to 40 hours continuous use (without backlight)
♦ Optional：RS232
Taiwan Scale
T-Scale BWS Waterproof Weighing Indicator
مواصفات المنتج
العلامة التجارية: Taiwan Scale
الموديل: BWS Waterproof Weighing Indicator
بلد المنشأ: Taiwan
الوصف

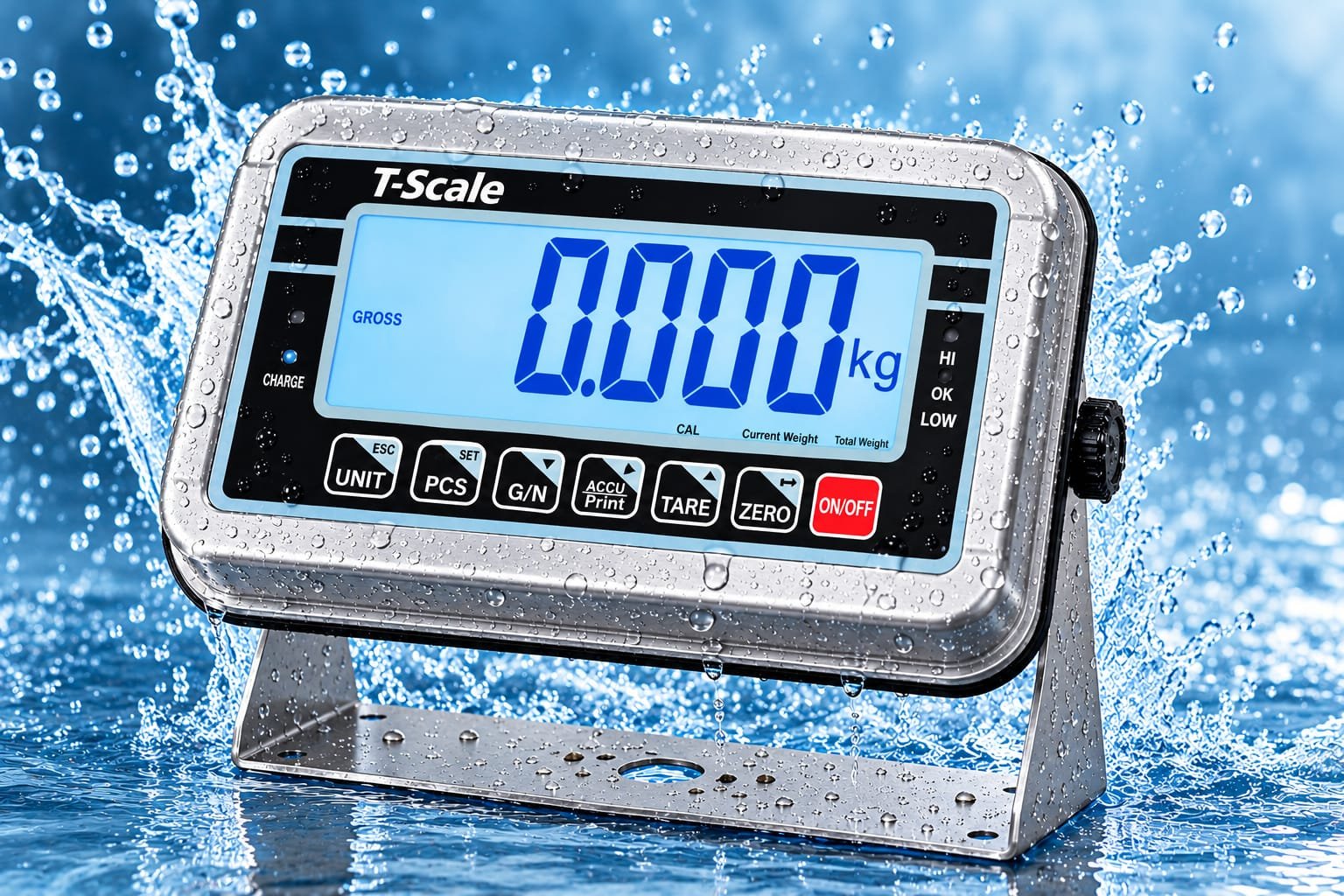

The T-Scale BWS Waterproof Weighing Indicator is a trade-approved, heavy-duty digital weight indicator designed for harsh industrial and washdown environments. Encased in a rugged, IP65/IP67-rated stainless steel housing, it features a large, high-contrast backlit LCD display that ensures clear visibility in low-light factories, food processing plants, and warehouses.
