المميزات
♦ High accuracy
♦ Calibrated to national standards
♦ Aluminum alloy construction
♦ Compact Design
♦ Easy to install
♦ Long term, reliable operation
♦ Usage & Applications：
- price computing scales
- counting scales
- weighing scales
- retail scales
♦ Calibrated to national standards
♦ Aluminum alloy construction
♦ Compact Design
♦ Easy to install
♦ Long term, reliable operation
♦ Usage & Applications：
- price computing scales
- counting scales
- weighing scales
- retail scales
المواصفات التفصيلية
♦ Capacity:200kg

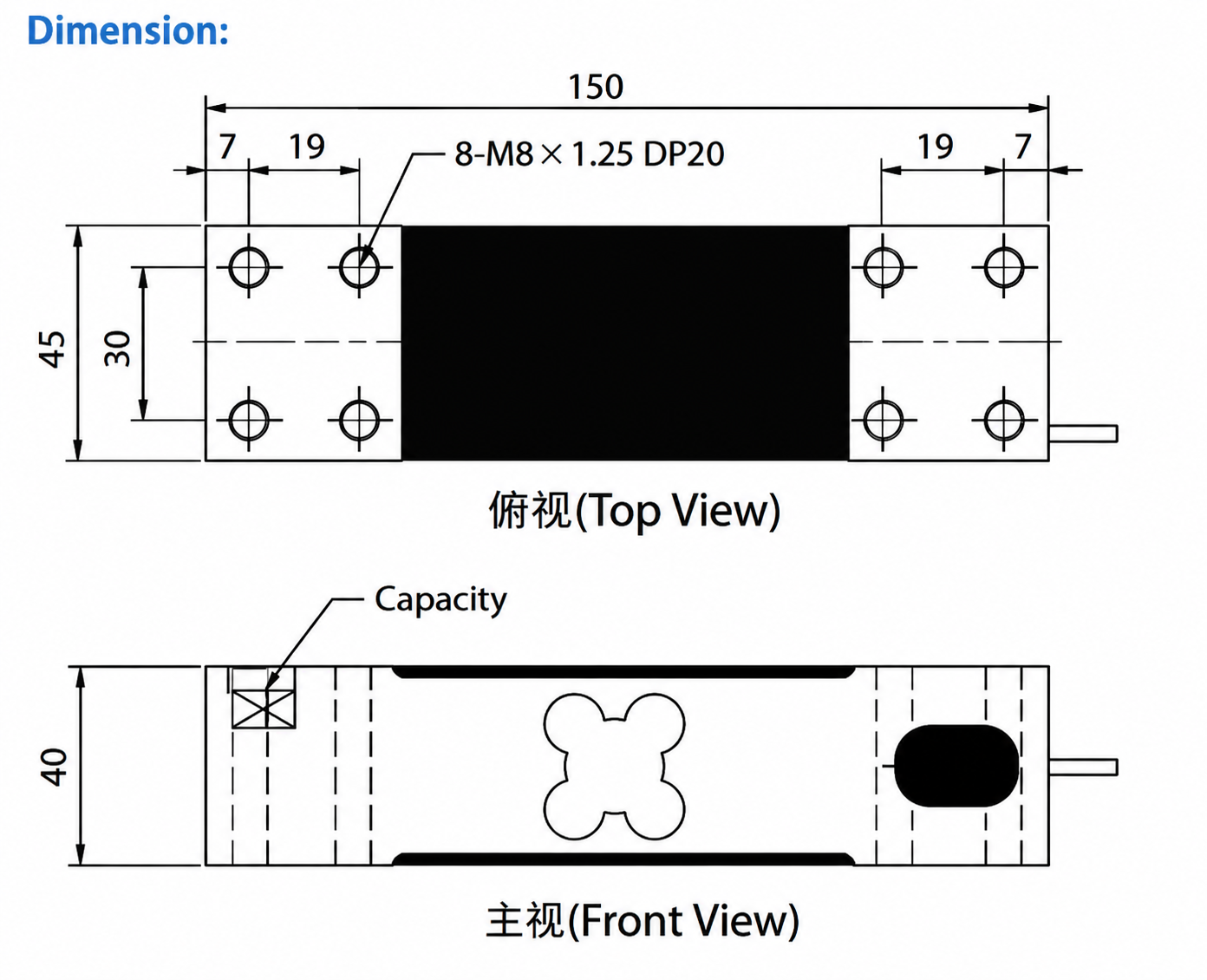

♦ Size:150*45*40mm
♦ Rated Output: 2.0 mv/V±5%
♦ Protection Class:PI66/PI67
♦ Zero Balance: ±0.0200mv/V
♦ Creep after 20 minutes: ≤0.02%R.O.
♦ Nonlinearity: ≤0.02%R.O.
♦ Hysteresis ,Repeatability: ≤0.02%R.O.
♦ Temperature effect rated output:≤0.003%R.O./
♦ Temperature effect on Zero: ≤0.003%R.O./
♦ Temperature compensated: -20~60
♦ Safe overload: 150%
♦ Input resistance: 410±15Ω
♦ Output resistance: 350±5Ω
♦ Recommended excitation: 5~12VDC
♦ Maximum excitation: 15VDC
♦ Length of cable: 1.5m(φ5)
♦ Mode of Connection
- Red（EXC+）
- Black（EXC-)
- Green（SIG+）
- White（SIG-）
♦ Size:150*45*40mm
♦ Rated Output: 2.0 mv/V±5%
♦ Protection Class:PI66/PI67
♦ Zero Balance: ±0.0200mv/V
♦ Creep after 20 minutes: ≤0.02%R.O.
♦ Nonlinearity: ≤0.02%R.O.
♦ Hysteresis ,Repeatability: ≤0.02%R.O.
♦ Temperature effect rated output:≤0.003%R.O./
♦ Temperature effect on Zero: ≤0.003%R.O./
♦ Temperature compensated: -20~60
♦ Safe overload: 150%
♦ Input resistance: 410±15Ω
♦ Output resistance: 350±5Ω
♦ Recommended excitation: 5~12VDC
♦ Maximum excitation: 15VDC
♦ Length of cable: 1.5m(φ5)
♦ Mode of Connection
- Red（EXC+）
- Black（EXC-)
- Green（SIG+）
- White（SIG-）
Load Cells
Mavin Single point load cell aluminum alloy weighing sensor NA4(200kg)
مواصفات المنتج
العلامة التجارية: Mavin
الموديل: Load Cell NA4
بلد المنشأ: China
الوزن القياسي: 200k
الوصف
The Mavin NA4 is a high-precision, parallel-beam single point load cell designed for industrial and commercial weighing applications. Manufactured from premium-grade aviation aluminum alloy and surface-anodized for enhanced corrosion resistance, it offers a reliable and cost-effective solution for medium-to-large capacity scales.
With capacity options ranging from 60kg to 800kg, the NA4 features a robust construction that delivers high accuracy and exceptional stability under off-center loads.
