♦ Low profile
♦ Aluminum construction with surface anodized
♦ Accuracy:0.02%R.O.
♦ Protection class:IP66/PI67
♦ Usage & Applications：
• price computing scales
• counting scales
• weighing scales
• retail scales

♦ Capacity: 350kg

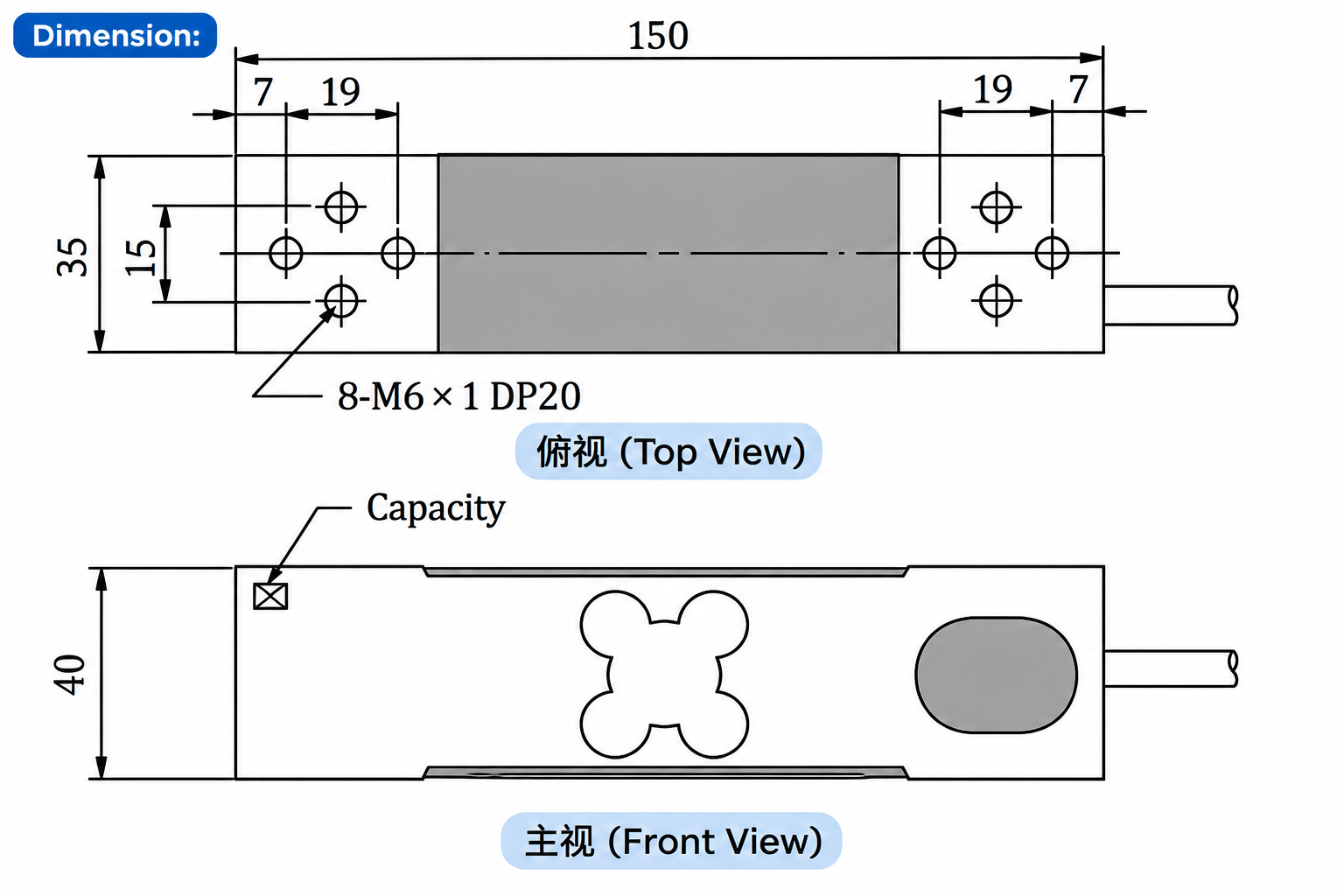

♦ Dimension:150*35*40mm
♦ Rated Output: 2.0 mV/V±5%
♦ Zero Balance: ±0.0200 mV/V
♦ Non-linearity: 0.02 %R.O.
♦ Hysteresis: 0.02 %R.O.
♦ Repeatability: 0.02 %R.O.
♦ 30mins Creep : 0.02 %R.O.
♦ 30mins Return: 0.02 %R.O.
♦ Safe Overload:150 %R.O.
♦ Ultimate Overload: 200 %R.O.
♦ Temperature Effect On Output: 0.002 %R.O./℃
♦ Temperature Effect On Zero: 0.003 %R.O./℃
♦ Input Impedance: 410±15 Ω
♦ Output Impedance: 350±5 Ω
♦ Insulation Impedance: ≥5000 MΩ/(50VDC)
♦ Recommended Excitation: 5~12 VDC
♦ Maximum Excitation: 15 VDC
♦ OperatingTemperature Range: -20~60 ℃
♦ Construction: Aluminum Alloy
♦ Protection Class: IP66 / IP67
♦ Cable: φ5×2m
♦ Mode of Connection:
- Red（EXC+）
- Black（EXC-）
- Green（SIG+）
- White（SIG-）
