♦ Core Performance & Calibration:
• High-Speed A/D Conversion: Operates at a conversion rate of up to 80 times per second for rapid and accurate weight capture.
• High Resolution: Features a highly precise external resolution of up to 1/10,000 (NTEP/OIML approved).
• Full Digital Calibration: Allows for immediate and simplified calibration setup directly through the digital panel.
• Multi-Calibration Function: Supports 5-point input configurations for highly optimized multi-point multi-calibration.
• Weight Back-Up: Automatically saves and restores active weight values in the event of an abrupt power interruption or system toggle

♦ Display & User Interface
• Large LED Window: Equipped with a 6-digit, 25mm high-contrast red LED display designed for long-range visibility.
• Status Matrix: Features sub-display LED lamp tracking for Stable, Tare, Gross, Hold, Zero, and Comm.
• Tactile Membrane Interface: Includes a full 10-key numeric pad alongside 5 dedicated application shortcuts for rapid parameter adjustments.

♦ Connectivity & Power

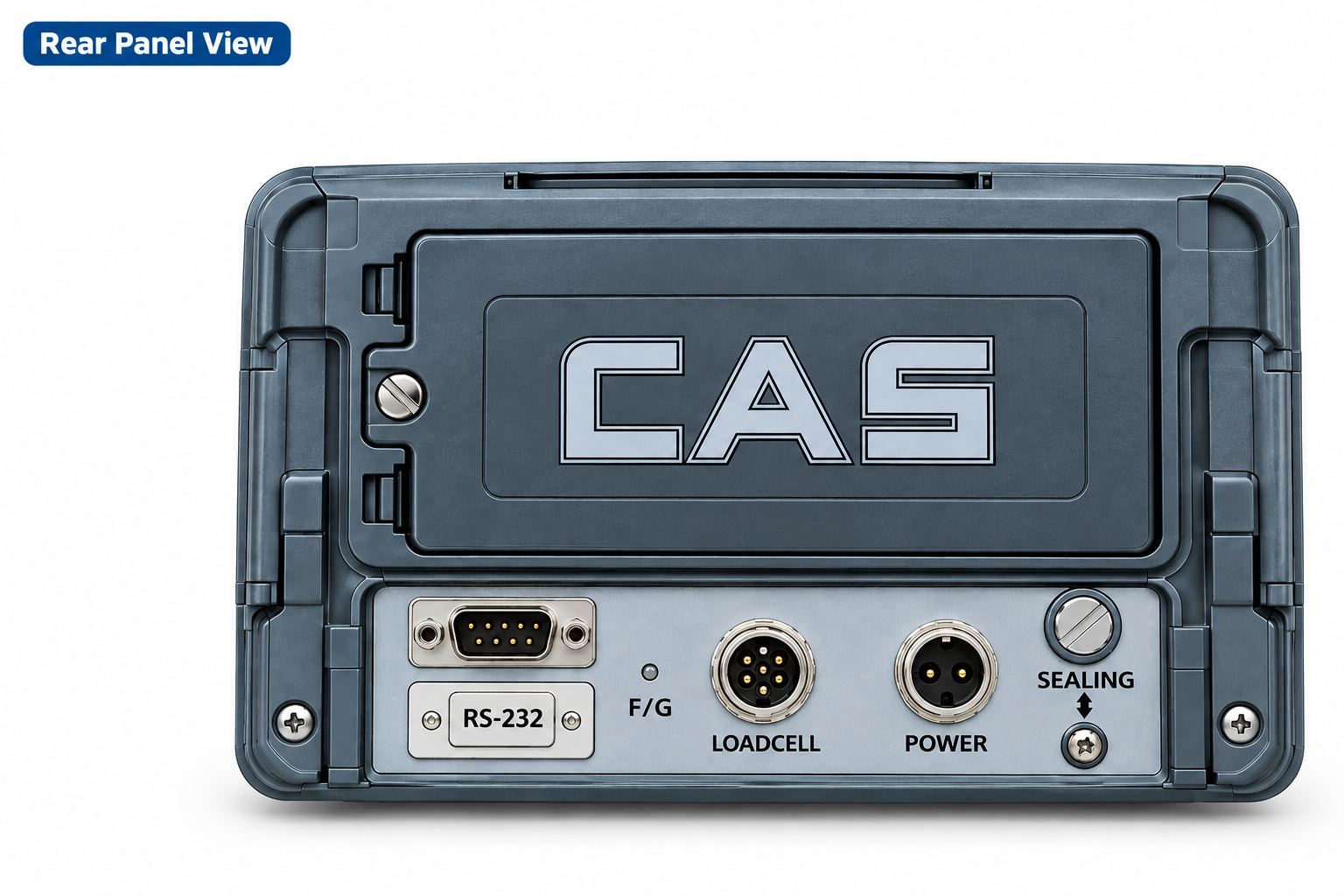

• Dual Serial Ports: Ships with a standard RS-232C interface with support for a secondary option port to seamlessly tie into PCs, remote master displays, or peripheral ticket printers (like the CAS DLP-50).
• Data Control Integration: Incorporates a robust PC Command Mode allowing bidirectional data requests and structural device control from external software.
• Flexible Load Cell Layout: Comprehensively supports both 4-wire and 6-wire load cells, allowing the integration of up to 8 load cells simultaneously at 350 ohms.
• Versatile Power Inlets: Runs on a standard 12VDC adapter or a high-capacity built-in rechargeable battery, with support for a 6 x AA dry cell battery holster for absolute remote operational freedom.

♦ Analog & Digital (A/D) Performance
• A/D Conversion Speed: Up to 80 times per second.
• Internal Resolution: 1/520,000.
• External Resolution: 1/10,000 for legal-for-trade applications (NTEP/OIML/Measurement Canada); can go up to 1/20,000 for non-approval setups.
• Input Sensitivity: 0.5 μV/D (Approved) / 0.2 μV/D (Non-approved).
• Load Cell Excitation Voltage: DC 5V.
• Load Cell Drive Capability: Connects up to 8 load cells at 350Ω each.
• Zero Calibration Range: 0 mV to 2 mV/V.
• Load Cell Input Range: -1.2 mV/V to 3.2 mV/V

♦ Power & Battery Dynamics
• Primary Power Source: DC 12V Adapter.
• Backup Power: Built-in 6V rechargeable Lead-Acid (Pb) battery.
• Alternative Power Option: 6 x AA size dry cell battery holder option.
• Battery Life: Approximately 33 hours of continuous usage (up to 120 hours on standby).
• Battery Recharge Time: Approximately 12 hours for a full charge.

♦ Display & Layout
• Display Screen: 6-segment, 1-inch (25mm) high red LED screen.
• Keypad Configuration: 15 keys total (10 numeric entry keys and 5 system function keys.

♦ Physical & Environmental Profile
• Enclosure Rating: NEMA 12 dust-resistant rating.
• Housing Material: High-durability ABS hardened plastic.

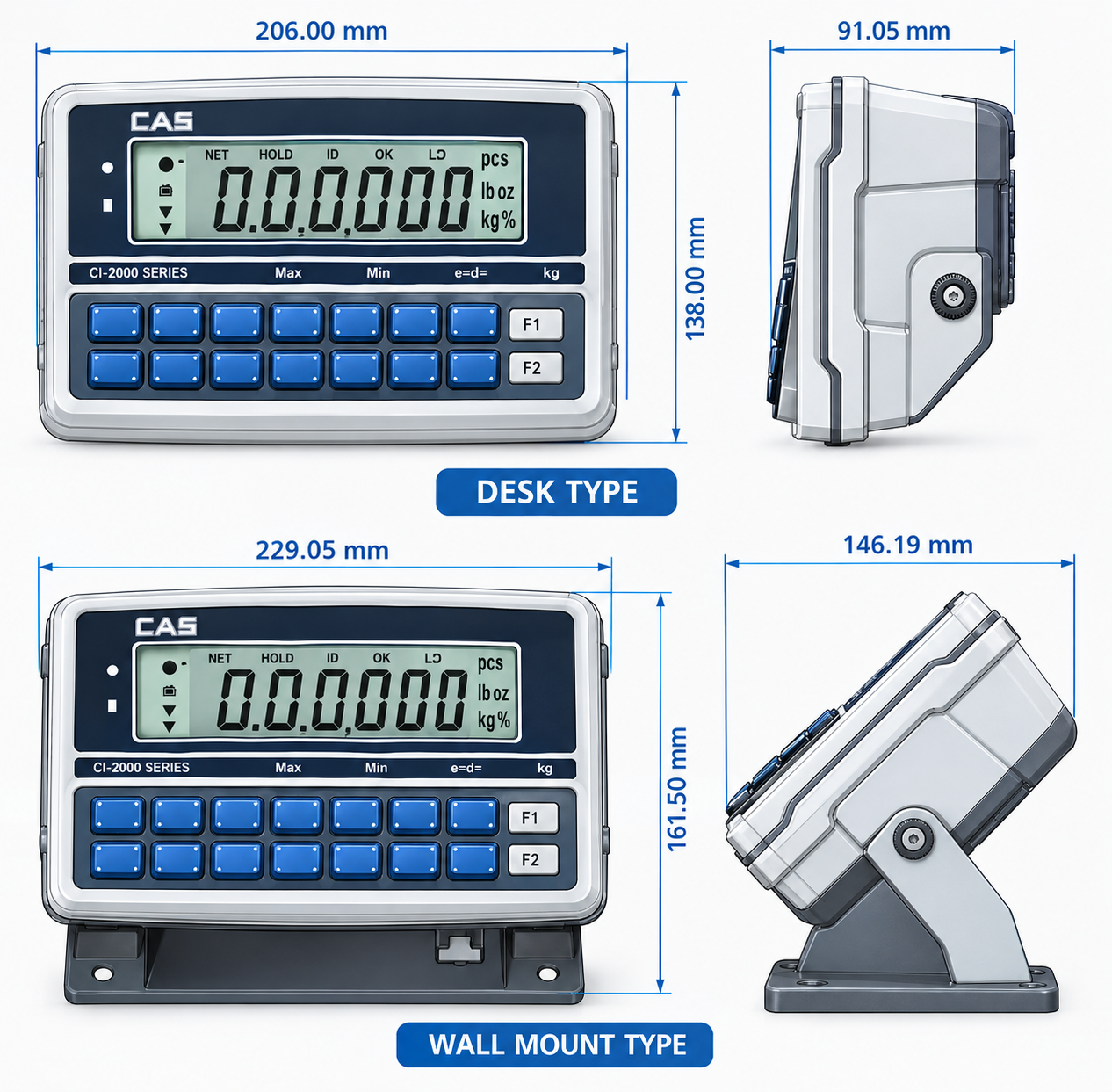

• Dimensions (W x D x H): 206 mm x 92 mm x 139 mm (without the swivel cradle bracket).
• Product Weight: 1.3 kg (approx. 0.5 kg for the internal module alone).
• Operating Temperature: -10°C to 40°C (14°F to 104°F)

♦ Data Communications
• Standard Interface: RS-232C protocol via 2 COM ports.
• Optional Interfaces: Expandable to RS-422 or RS-485 serial modules
♦ Platform sizes:
- 30 x 40 cm
- 40 x 50 cm
- 50 x 60 cm
- 60 x 70 cm
- 60 x 80 cm
- 100 x 100 cm
- 125 x 125 cm
- 150 x 150 cm
- Contact us for any other desired size.
