♦ Standard RS232 port
♦ AC/DC power adapter included
♦ Large LCD display with backlight
♦ Single pass automatic span calibration
♦ RFI/EMI screen / watch-dog function
♦ Display resolution up to 1/5,000
♦ Supports up to 4 load cells at 350 ohm

♦ Applications
- Floor Scales
- Livestock Scales
- Platform Scales
- Pallet Scales
- Forklift Scales

♦ Capacity: 30kg/10ton
♦ Maximum Displayed Resolution: 5,000 divisions
♦ Accuracy: <= 0.01% Full Scale
♦ Excitation: 5 VDC
♦ Load Cell Capability: Up to 4 x 350
♦ Units: Kg, lb
♦ Display: 6-digit, 0.55" (25mm) LED
♦ Power: AC Adapter

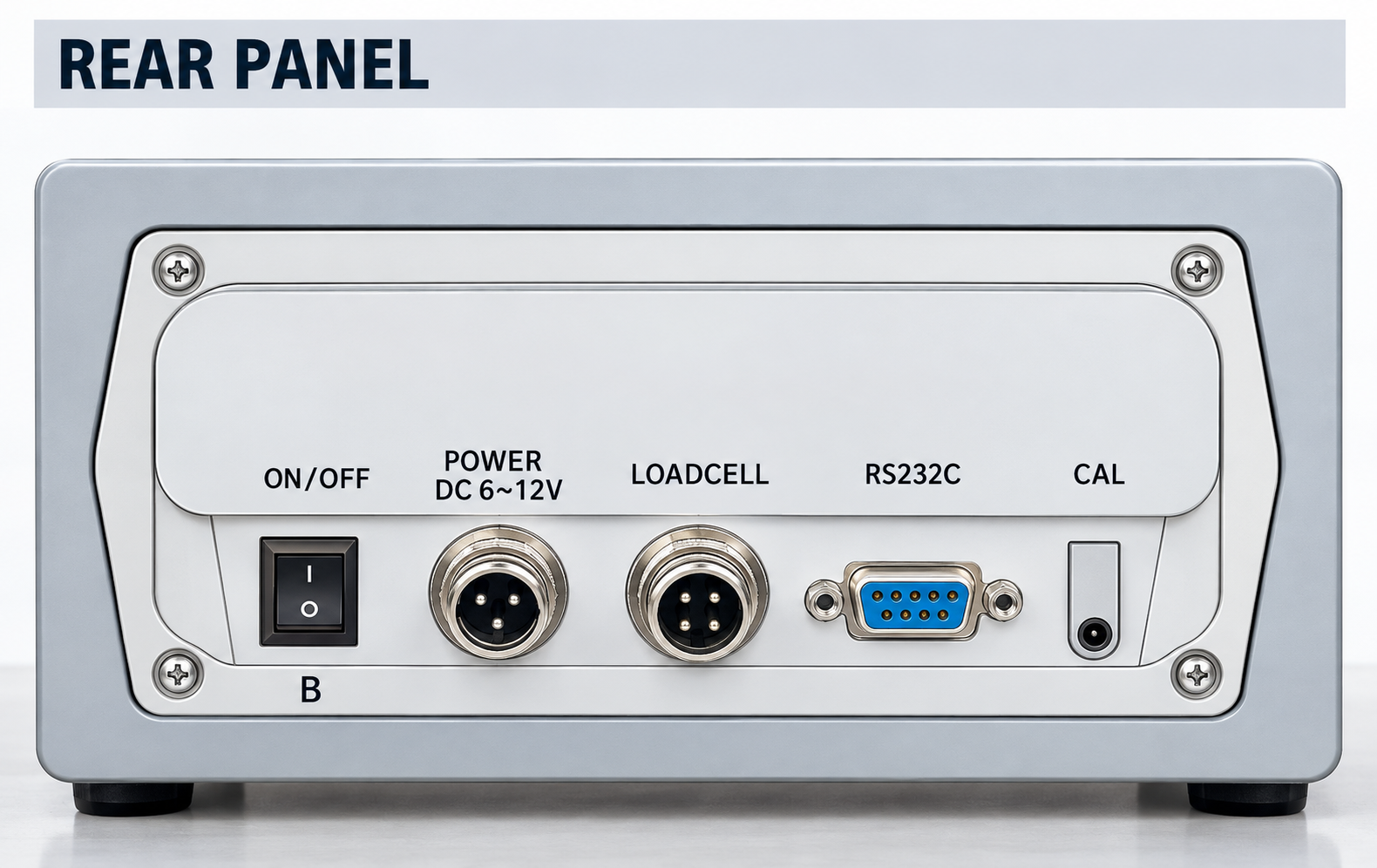

♦ Standard Communication Option: RS232
♦ Operating Temperature: 14° F to 104° F (-10° C to 40° C)
♦ Input Sensitivity: 2 V/D(H-44, OIML) 0.5 V/D(Non H-44, OIML)
♦ Load Cell Excitation: DC 5V, Up to 4 350 Load Cells
♦ A/D Conversion Speed 10 times/sec

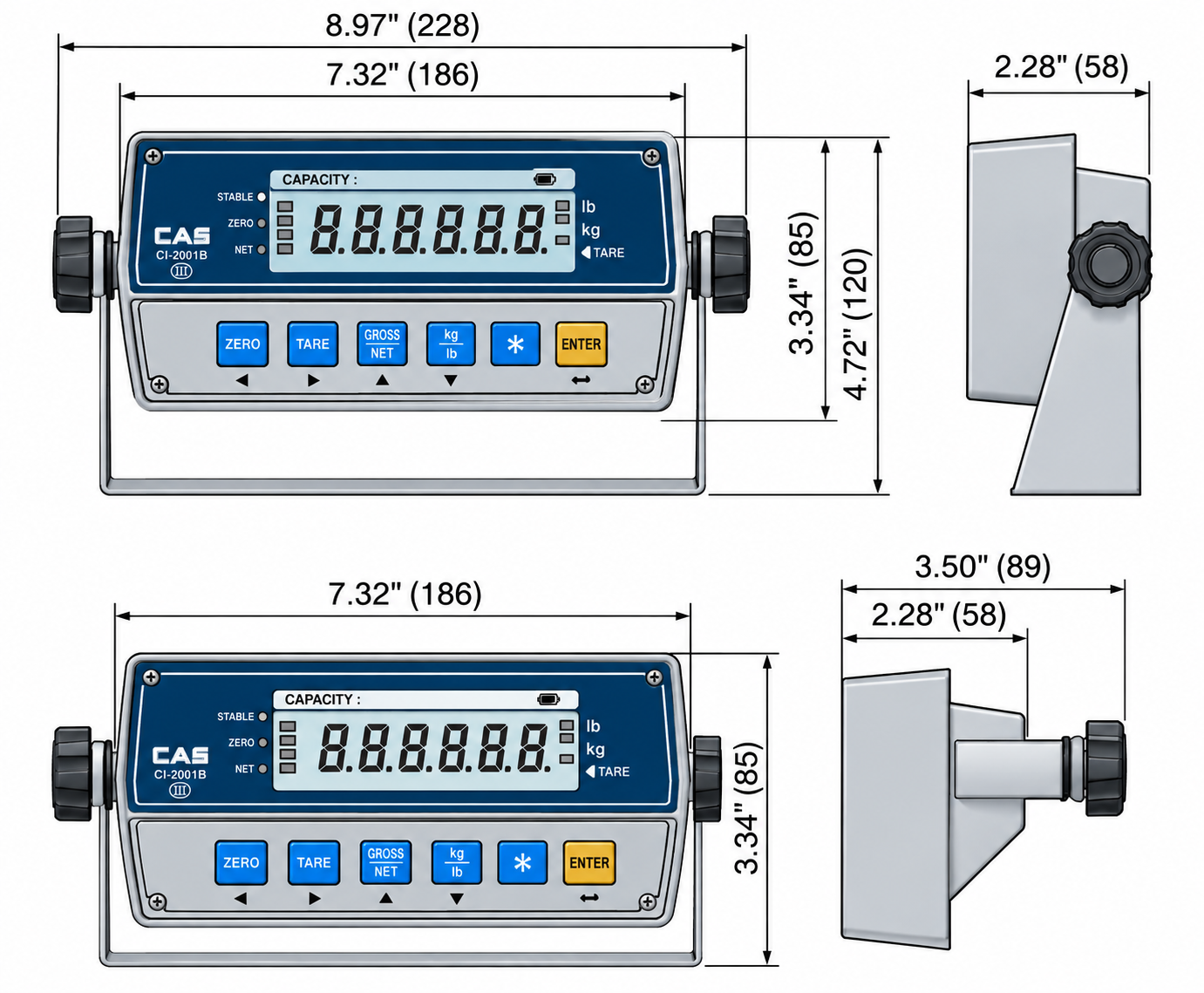

♦ Dimensions(inch): 7.32(W) 2.28(D) 3.34(H)
♦ Platform sizes:
- 30 x 40 cm
- 40 x 50 cm
- 50 x 60 cm
- 60 x 70 cm
- 60 x 80 cm
- 100 x 100 cm
- 125 x 125 cm
- 150 x 150 cm
- Contact us for any other desired size.
